EMD Formwork Accessories

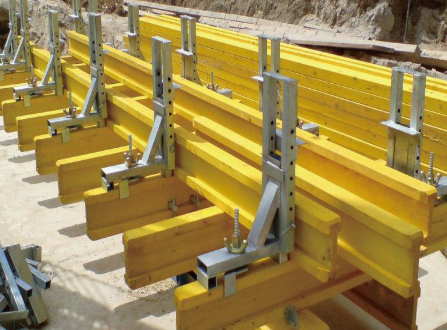

EMD Formwork Accessories are designed to deliver strength, safety, and precision for all types of concrete formwork applications. Manufactured using high-quality materials and strict quality standards, our accessories ensure reliable performance, longer service life, and efficient on-site operations. We offer a comprehensive range of formwork accessories that support slab, beam, column, and wall formwork systems across residential, commercial, industrial, and infrastructure projects.
EMD Drop Forged Fix Clamp
Made from tested EN grade steel with boron hardened 14mm bolt & Flange Type nut duly hot dip galvanised as per EN-74 Class-“B” , & passed Slip & Distortion Test as per EN-74- Weight 1.02 Kg
EMD Drop Forged Swivel Clamp
Made from tested EN grade steel with boron hardened 14mm bolt & Flange Type nut duly hot dip galvanised as per EN-74 Class-“B” , & passed Slip & Distortion Test as per EN-74- Weight 1.10 Kg
EMD Drop Forged Wing Nut
Made from tested EN Grade steel having 17mm x10 ACME Threads suitable for 17mm tie rods Duly Electro Galvanised Finish test & Passed for Slip test 90 Kn- weight 0.400Kg

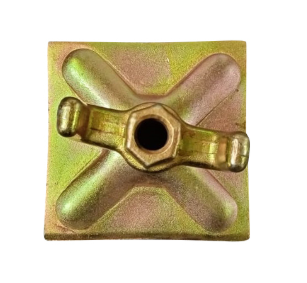

EMD Forged Waller Plate with Wing Nut
Made from tested steel and with movable wing nut duly inner threaded 17mm ACME suitable for tie rods with Electro galvanised finish Slip Test Pass at 120 Kn – weight 1.15Kg

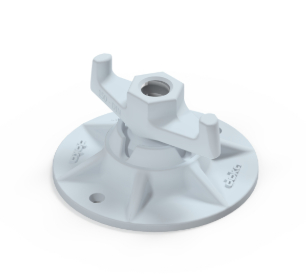

EMD Super Plate
Made for Tested EN Grade steel with duly fitted 22mm wing nut , Load tested 200 KN , weight 3.2Kg
EMD Tie Rods
Made from EN Grade steel inner dia 15mm & outer Dia 17mm cold rolled with 10mm Pitch ACME Threads – Adm Load – 85Kn Load at Yield Point- 149Kn Breaking Load- 170 Kn
EMD Tie Rods
Made from EN Grade steel inner dia 20mm & outer Dia 22mm cold rolled with 10mm Pitch ACME Threads – Adm Load – 140Kn Load at Yield Point- 245Kn Breaking Load- 275 Kn
EMD Hex Nut
Made from tested solid steel ,50mm Long inner threading 17mm ACME duly electro galvanised finish , Tested at 90 Kn Slip Load – weight 210Gms
EMD Hex Connector
Made from tested solid steel ,100mm Long inner threading 17mm ACME duly electro galvanised finish , Tested at 120 Kn Slip Load, suitable to connect two tie rods . weight 450Gms
| SIZE(M) | WEIGHT | CODE |
|---|---|---|
| 170/225MM | 4.55 | EMD/F-001 |
EMD Flange Clamp
made from 12mm EN Grade bar with forged wings for clamping. Weight 1.1Kg with welded 8mm Flanges at both side duly electroplated finish

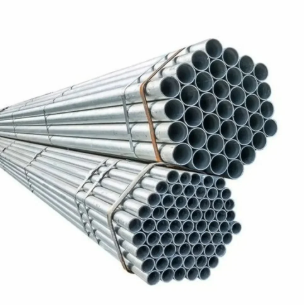

EMD Scaffolding Tube
Made from Tested EN Grade steel outer dia 48.3mm x 4.0mm THk with duly hot dipped galvanized as per BS:1139 :Part1, Sec:1:1
EMD Drop Forged Swivel Clamp 40x76
Made from tested EN grade steel with boron hardened 14mm bolt & Flange Type nut duly hot dip galvanised as per EN-74 Class-“B” , & passed Slip & Distortion Test as per EN-74- Weight 2.10 Kgh
EMD Drop Forged Anchor Nut:
Made from tested EN grade steel outer dia 125mm and inner threads are 17mm ACME 4 TPI suitable to use with 17mm Tie Rods .

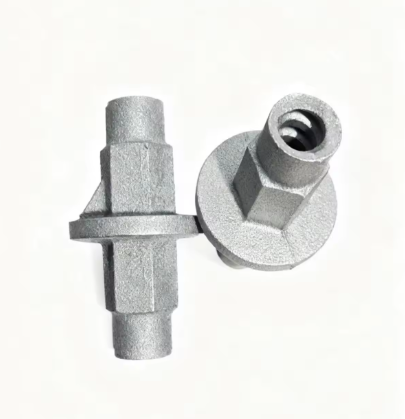

EMD Casted Water Stopper
Made from tested malleable cast iron and inner threads are 17mm ACME 4 TPI suitable to use with 17mm Tie Rods .
