| SPECIFICATION | TESTING'S |
|---|---|

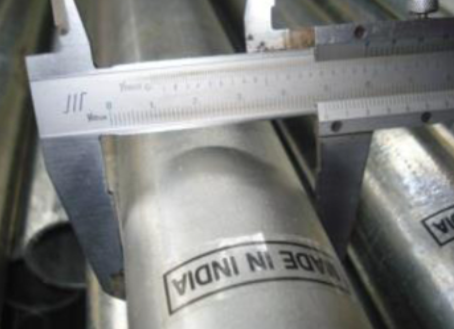

| EMD Scaffolding Tubes: Made from tested killed steel outer dia 48.3mmx4.0mm thickness as per BS:1139 TYPE-3 ,Minimum Yield Stress235N/mm2 (34 Ksi) (24Kg/mm2)- wall thickness 3.2MM less will not acceptable. Finish- Pure Hot Dip Galvanized as EN 10240A 1 |
1- MTC 1- MTC 1- MTC 1- MTC 1- MTC |
EMD COUPLERS SPECIFICATIONS
| Product Description | Fittings and Finishes | Test Certificates |
|---|---|---|
| EMD FORGED FIX CLAMP- Made from EN Grade tested steel & produced by hot forged technology all the couplers duly clean from burr & flushes before final assembly , EMD clamps are having boron steel hardened tempered steel hardware to make their threads more stronger & re usable up to long time all the couplers tested as per BS EN 12811-1 Class B | Duly white Electro Galvanized suitable for 48.3 OD Scaffolding Tube |
1- Load Test |
| Product Description | Fittings and Finishes | Test Certificates |
|---|---|---|
| EMD FORGED SWIVEL CLAMP- Made from EN Grade tested steel & produced by hot forged technology all the couplers duly clean from burr & flushes before final assembly , EMD clamps are having boron steel hardened tempered steel hardware to make their threads more stronger & re usable up to long time all the couplers tested as per BS EN 12811-1 Class B | Duly white Electro Galvanized suitable for 48.3 OD Scaffolding Tube |
5- Load Test |
| Product Description | Fittings and Finishes | Test Certificates |
|---|---|---|
| EMD FORGED SINGLE CLAMP- tested steel & produced Cold Pressing technology with Forged Type upper cap all the couplers duly clean from burr & flushes before final assembly , EMD clamps are having boron steel hardened tempered steel hardware to make their threads more stronger & re usable up to long time all the couplers tested as per BS EN 12811-1 Class BMade from EN Grade 5.0mm thk, | Duly white Electro Galvanized suitable for 48.3 OD Scaffolding Tube |
9- Load Test |
| Product Description | Fittings and Finishes | Test Certificates |
|---|---|---|
| EMD PRESSED SLEEVE CLAMP- Made from EN Grade 4.0mm thk, tested steel & produced Cold Pressing technology all the couplers duly clean from burr & flushes before final assembly , EMD clamps are having boron steel hardened tempered steel hardware to make their threads more stronger & re usable up to long time all the couplers tested as per BS EN 12811-1 Class B | Duly Yellow Electro Galvanized suitable for 48.3 OD Scaffolding Tube |
13- Load Test |
| Product Description | Fittings and Finishes | Test Certificates |
|---|---|---|
| EMD FORGED BEAM CLAMP- Made from EN Grade 12 mm thk, tested steel & produced Cold Pressing technology with Forged Type upper cap all the couplers duly clean from burr & flushes before final assembly , EMD clamps are having boron steel hardened tempered steel hardware to make their threads more stronger & re usable up to long time all the couplers tested as BS EN 12811-1 Class B | Duly Yellow Electro Galvanized suitable for 48.3 OD Scaffolding Tube. |
17- Load Test |
| Product Description | Fittings and Finishes | Test Certificates |
|---|---|---|
| EMD METAL BOARDS- Made from tested pre galvanized sheet 1.2mm THK with top perforted and having back supports at every 500mm distance ,planks having both side 6mm hanging hooks . | Duly Galvanized |
21- Load Test |
| Product Description | Fittings and Finishes | Test Certificates |
|---|---|---|

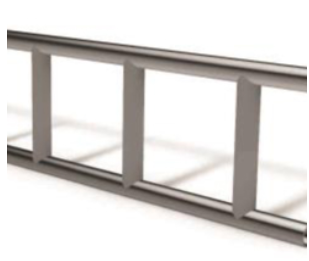

| EMD LADDER BEAM- Made from ERW 48.3mm OD x4.0mm thk, WITH Welded horizontal rungs at every 350mm distance duly hot dip galvanized & tested as BSE-1281O-2 | Hot Dip galvanized |
23- Load Test |
| Product Description | Fittings and Finishes | Test Certificates |
|---|---|---|

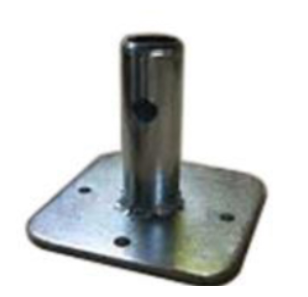

| EMD BASE PLATE- Made from tested steel 5.0mm Thk steel with welded 38mm OD Tube at center BS 1139-sec 2.1 | White Electroplated |
26- MTC |
