EMD Props & Jacks

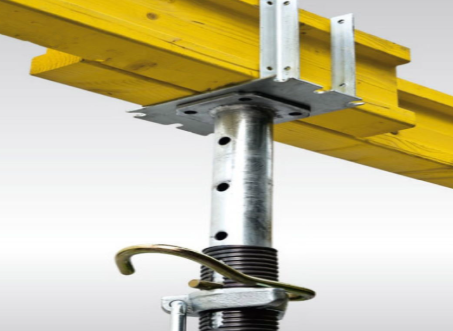

EMD Props & Jacks are engineered to provide reliable and safe temporary support for slabs, beams, and formwork systems in construction projects. Manufactured using high-grade steel and precision components, they ensure superior load-bearing capacity, stability, and long service life. Designed for ease of adjustment and quick installation, EMD Props & Jacks help improve work efficiency while maintaining strict safety standards on site. Their robust construction makes them ideal for residential, commercial, and infrastructure projects.

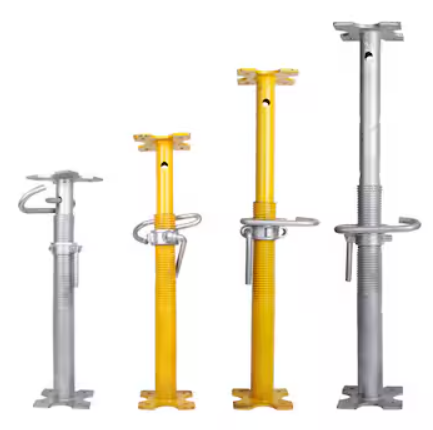

EMD LIGHT DUTY PROP SYSTEM
Made from 60mm outer diax 1.8-2.0mm Thk Tested steel & inner Tube 48.3OD x1.8-2.0mm Thk Prop sleeve 60mm OD x3.0mm Thk x250mm long duly welded with outer tube ,with light duty nut with 10mm Handel & locking pin G-Type with prop , welded base plates at both ends size 120x120x4,0mm FINISH :
| SIZE(M) | WEIGHT | CODE |
|---|---|---|
| 1.10-1.80 | 8.20 KG | EMD/GI-001 |
| 1.80-3.20 | 9.50 KG | EMD/GI-002 |
| 2.00-3.20 | 10.90 KG | EMD/GI-003 |
| 2.20-4.00 | 12.50KG | EMD/GI-004 |

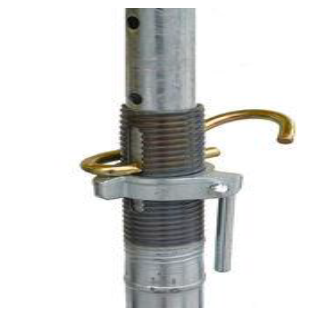

EMD MEDIUM DUTY PROP SYSTEM
Made from 60mm outer diax 3.0mm Thk Tested steel & inner Tube 48.3OD x2.8mm Thk Prop sleeve 60mm OD x3.2mm Thk x250mm long duly welded with outer tube ,with light duty nut with 12mm Handel & locking pin G-Type with prop , welded base plates at both ends size 150x150x5,0mm 0mm FINISH : Painted, Powder coated, Galvanised,
| SIZE(M) | WEIGHT | CODE |
|---|---|---|
| 1.10-1.80 | 10.80 KG | EMD/G2-001 |
| 1.80-3.20 | 13.90KG | EMD/G2-002 |
| 1.98-3.35 | 14.40KG | EMD/G2-003 |
| 2.60-4.00 | 16.10KG | EMD/G2-004 |

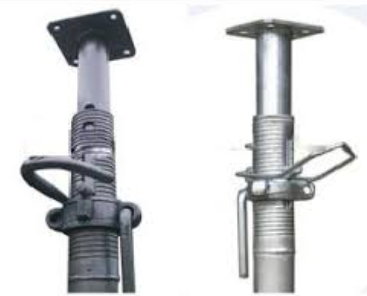

EMD HEAVY DUTY PROP SYSTEM
Made from 60mm outer diax 3.2mm Thk Tested steel & inner Tube 48.3OD x3.2mm Thk Prop sleeve 60mm OD x4.0mm Thk x250mm long duly welded with outer tube ,with light duty nut with 15 mm Handel & locking pin G-Type with prop , welded base plates at both ends size 150x150x6,0mm 0mm FINISH : Painted, Powder coated, Galvanised,
| SIZE(M) | WEIGHT | CODE |
|---|---|---|
| 1.75-3.20 | 17.70KG | EMD/G3-001 |
| 1.98-3.35 | 18.60 | EMD/G3-002 |
| 2.60-3.96 | 20.45 | EMD/G3-003 |
| 3.20-4.87 | 26.40 | EMD/G3-004 |
EMD SINGLE PUSH PULL PROP SYSTEM
Single push pull prop are manufactured with seamless /ERW heavy duty tubing YST-310 with 2 screw rods 38mm ODx950mm long duly fixed at both ends& freely adjustable range 650mm and swivel heads plates at both ends .
|
SIZE 1 |
WEIGHT 15.8.0kg |
CLOSED 2200mm |
OPEN 3250mm |
|---|
|
Outer Tube Dia: Inner Threaded Rod Dia: |
48.3MM 38.3MM |
|
Base Plate: Head Plate: |
100x180x10mm 100x180x10mm |
|
Finish: Tested to: |
Painted BS4074 / BS5507 |
| Load Capacity angular | 5-6 Tons |

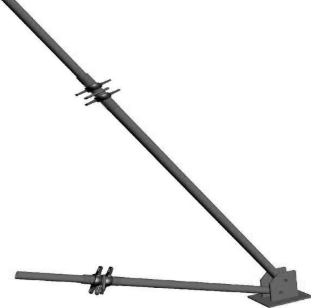

EMD DOUBLE PUSH PULL PROP SYSTEM
Double Push Pull props used to support the formwork panels and is fitted at the back face of the steel panel. It consist of an outer & inner pipe, sleeve, two nuts, locking pin with 3 direction movable base adaptor FINISH - Painted, Powder coated, Galvanized .
| SIZE(M) | WEIGHT | CODE |
|---|---|---|
| Double Push Pull Props 6/3m | 43.780 | EMD/G7-001 |
| Double Push Pull Props 4/2m | 32.030 | EMD/G7-002 |

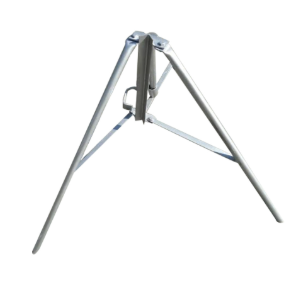

EMD TRI POD
made of Tested EN Grade steel & suitable for Prop support at any place fully as per Q-235 specifications , Finish - Painted , Powder coated & hot dipped Galvanised
| SIZE(M) | WEIGHT | CODE |
|---|---|---|
| 1.0m/60 | 14.20 | EMD/T-001 |

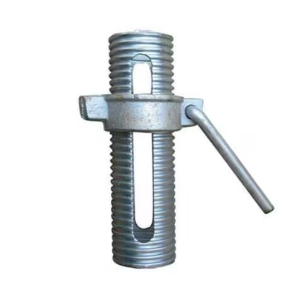

EMD PROP SLEEVE
Made from tested EN Grade steel with outer dia 60.1mm x3.2mm THK, duly threaded rolled Type overall length 250mm|300mm|350mm, with forged type heavy duty nut & 16mm Handel
| SIZE(M) | WEIGHT | CODE |
|---|---|---|
| 60/250MM | 1.90 | EMD/P-001 |
| 60/300MM | 2.25 | EMD/P-002 |
| 60/350MM | 2.99 | EMD/P-003 |
EMD FORK HEAD
| SIZE(M) | WEIGHT | CODE |
|---|---|---|
| 170/225MM | 4.55 | EMD/F-001 |
